Industrial Water Treatment Dosing Pump/Dosing Screw Pump

Industrial Water Treatment Dosing Pump/Dosing Screw Pump

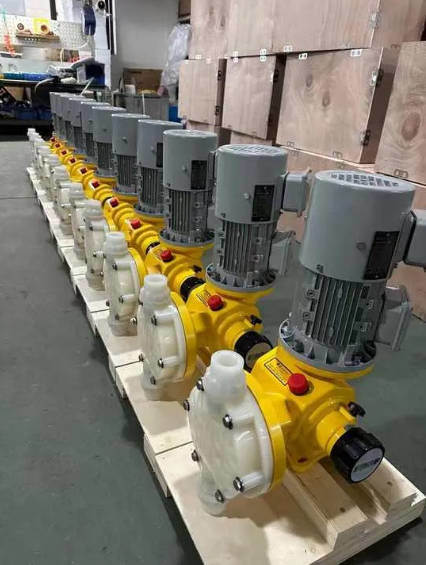

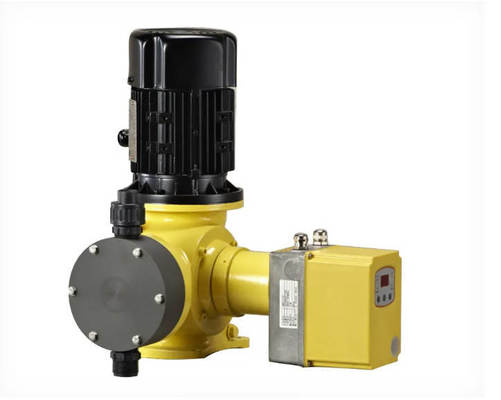

Dosing pump are positive displacement pumps that precisely measure and deliver liquids. They are widely used in chemical dosing systems in industries such as water treatment, chemical engineering, and power generation.
Applications
In industrial water treatment, they are used for the precise dosing of corrosion inhibitors, scale inhibitors, biocides, pH adjusters, and flocculants. In the chemical and pharmaceutical industries, they are used for the precise mixing and delivery of various chemical raw materials. In the environmental protection industry, they are used for sewage treatment and waste gas treatment.
Main Specification:
Rated flow: 24-2000 L/h
Temperature:-30ºC-50ºC(S.S.100ºC) Max pressure: 1.0 MPa
Material viscosity: 0.3-800mm²/s Dosing precision:±1%

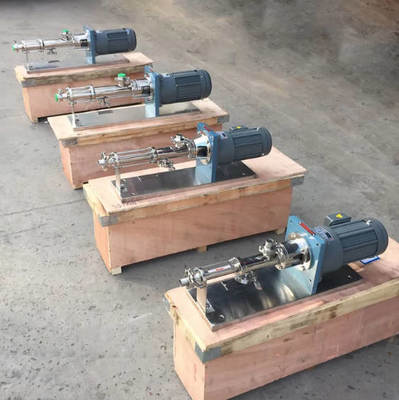

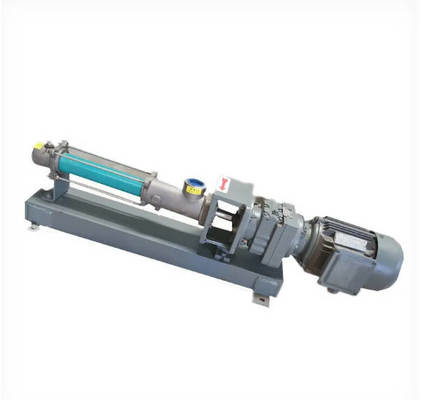

Dosing screw pump is a type of pump that works based on the positive displacement principle. The main working parts are the eccentric screw (rotor) and the fixed bushing (stator). The rotor makes planetary rotation in the stator to form a sealed cavity, achieving axial uniform delivery of the medium.
Please confirm the flow capacity, feeding pressure, pump type and flow direction.
Flow: Under pressure, the flow is proportional to the rotating speed.
Pressure: It's decided by the pump grade number, normally every range is 0.6 MPa.before using.
Flow Direction: the flow direction is decided by the motor direction. The inlet/outlet is set according to needs. Normally the port near to the motor is the inlet.

Product Parameters of Ore Dressing Equipment
Specifications of Dosing pump

Specifications of Dosing screw pump

Product Display of Ore Dressing Equipment



Ore Dressing Equipment
