Pull Open The Filter Press Hydraulic Automatic Pressure Holding Machine Once

Pull Open The Filter Press Hydraulic Automatic Pressure Holding Machine Once

Gambar besar :  Pull Open The Filter Press Hydraulic Automatic Pressure Holding Machine Once

Detail produk:
Tempat asal: Henan China
Nama merek: ZTIC
Sertifikasi: ISO\CE
Nomor model: Peralatan Pabrik Semen
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: negotiated
Kemasan rincian: Pengepakan standar atau sesuai dengan persyaratan pelanggan
Syarat-syarat pembayaran: L/c, t/t
Detil Deskripsi produk
Area filter (m2): 4-55 Ukuran Plat (mm): 500*500
Ketebalan kue (mm): 30 Volume Ruang Filter (L): 60-833
Plate no. (PC): 9-20 Tekanan Filtrasi (MPA): ≤ 0.6
Tenaga motor (kw): 2.2-4 Berat (kg): 890-5000
Jaminan: 12 bulan Kondisi: Baru
Pelabuhan: Tiongkok Qingdao

Pull Open The Filter Press Hydraulic Automatic Pressure Holding Machine Once



Product Introduction

Application Scope: The equipment is widely used in industries such as concrete, ceramics, coking, and building materials.

Product Features:

1. The primary advantage of the single-pull chamber filter press lies in its rapid plate-pulling speed and automatic auxiliary discharge.

2. Compact structure, labor-saving design, and high automation level.

3. Integrated with an automatic vibration device, it enables vibration-assisted discharge for evenly spaced filter plates, achieving fully automated unloading.



Product Display

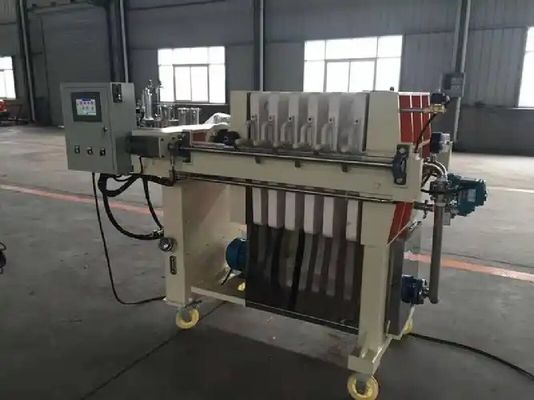

Pull Open The Filter Press Hydraulic Automatic Pressure Holding Machine Once 0

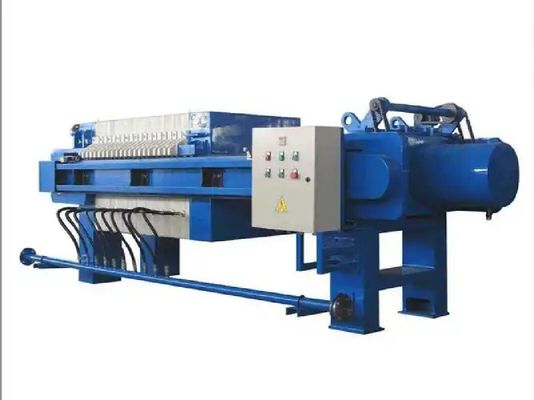

Pull Open The Filter Press Hydraulic Automatic Pressure Holding Machine Once 1



Product Parameters

Model Filter area(㎡) Plate size(mm) Cake thickness(mm) Filter chamber volume(L) Plate NO.(pcs) Filtration pressure(Mpa) Motor Power(kw) Weight(kg) Dimensions L*W*H(mm) Foundation Size(mm)
L B D H
X A Y4/450-30U B 4 500*500 30 60 9 ≤0.6 2.2 890 2230*800*900 1550 390 700 560
M K
X A Y5/450-30U B 5 79 12 920 2630*800*900 1800
M K
X A Y6/450-30U B 6 700*700 95 7 2.2 1450 2200*1050*1150 1490 560 1110 700
M K
X A Y8/450-30U B 8 119 9 1500 2400*1050*1150 1640
M K
X A Y10/630-30U B 10 154 12 1610 2540*1050*1150 1890
M K
X A Y12/630-30U B 12 178 14 1720 3130*1050*1150 2140
M K
X A Y15/630-30U B 15 226 18 1880 3550*1050*1150 2490
M K
X A Y10/870-30U B 10 870*870 154 7 2.2 1940 2720*1270*1300 1580 700 1380 785
M K
X A Y20/870-30U B 20 307 15 2230 3500*1270*1300 2430
M K
X A Y18/1000-30U B 18 1000*1000 270 10 4 1850 3470*1400*1400 2320 780 1480 1000
M K
X A Y35/1000-30U B 35 525 20 2540 5470*1400*1400 3620
M K
X A Y28/1250-30U B 28 1250*1250 420 10 4 3600 4110*1770*1600 3220 850 1740 1250
M K
X A Y55/1250-30U B 55 833 20 5000 6510*1770*1600 4320
M K



Q&A

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
