Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Sertifikasi: | ISO/CE | Aplikasi: | batubara, bijih logam dan bukan logam |
|---|---|---|---|
| Nama Produk: | Kerekan Penambangan Berliku Sope Tunggal | NAMA: | Kerekan Penambangan Gesekan Multi-Tali |
| Jenis: | Kerekan | Kapasitas: | oem |
| Cahaya Tinggi: | Mesin Pengangkat Konveyor 305M,Hoist Gesekan 305M,Hoist Gesekan 650M |
||
Hoist Pertambangan Berliku Tunggal-Tali Kerekan Pertambangan Gesekan Multi-Tali

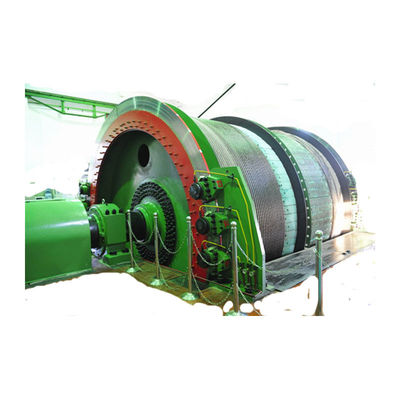

Kerekan Penambangan Berliku Sope Tunggal
Produk seri termasuk tipe tabung tunggal dan tabung ganda 2m-5m, dan dapat digunakan untuk kerekan pertambangan, pengangkatan personel dan material dan peralatan yang diturunkan dari poros vertikal atau poros miring dari bijih batubara, logam dan bukan logam.
Hoist tambang JK terutama digunakan di jalan raya miring dan sumur tambang batu bara, tambang logam dan tambang non-logam untuk mengangkat atau menurunkan personel dan material.
Parameter produk
| Model | Drum |
Ketegangan PF |
Ketegangan Berbeda (KN |
Tali Diameter (mm) |
Kapasitas (m) |
Maks Kecepatan |
Mengurangi rasio kecepatan |
Motor Kecepatan |
||||
|
n kamu M B e R |
dia | lebar | Satu-laye | Dua lapis | Tiga lapis | |||||||
| M | kn | mm | M | MS | r/mnt | |||||||
| JK-2×1.5/20 | 1 | 2.0 | 1.5 | 62 | 24 | 305 | 650 | 1025 | 5.2 | 20.0 | 1000 | |
| JK-2 × 1,5/31.5 | 31.5 | |||||||||||
| JK-2 × 1,8/20 | 1.80 | 375 | 797 | 1246 | 20.0 | |||||||
| JK-2 × 1,8/31.5 | 31.5 | |||||||||||
| JK-2.5×2/20 | 2.5 | 2.00 | 83 | 28 | 448 | 945 | 1475 | 5.0 | 20.0 | 750 | ||
| JK-2.5×2/31.5 | 31.5 | |||||||||||
| JK-2.5×2.3/20 | 2.30 | 525 | 1100 | 1712 | 20.0 | |||||||
| JK-2.5×2.3/31.5 | 31.5 | |||||||||||
| JK-3 × 2.2/20 | 3.0 | 2.20 | 135 | 36 | 458 | 966 | 1513 | 6.0 | 20.0 | |||
| 2JK-2×1/11.2 | 2 | 2.0 | 1.00 | 62 | 40 | 24 | 182 | 406 | 652 | 7.0 | 11.2 | |
| 2JK-2×1/20 | 20.0 | |||||||||||
| 2JK-2 × 1/31.5 | 31.5 | |||||||||||
| 2JK-2×1,25/11.2 | 1.25 | 242 | 528 | 838 | 11.2 | |||||||
| 2JK-2×1,25/20 | 20.0 | |||||||||||
| 2JK-2×1,25/31.5 | 31.5 | |||||||||||
| 2JK-2.5×1.2/11.2 | 2.5 | 1.20 | 83 | 65 | 28 | 843 | 8.8 | 11.2 | ||||
| 2JK-2.5×1.2/20 | 20.0 | |||||||||||
| 2JK-2.5×1.2/31.5 | 31.5 | |||||||||||
| 2JK-2.5×1.5/11.2 | 2.5 | 1.50 | 83 | 65 | 28 | 319 | 685 | 1080 | 8.8 | 11.2 | ||
| 2JK-2.5×1.5/20 | 20.0 | |||||||||||
| 2JK-2.5×1.5/31.5 | 31.5 | |||||||||||
| 2JK-3×1.5/11.2 | 3.0 | 135 | 90 | 36 | 289 | 624 | 994 | 10.5 | 11.2 | |||
| 2JK-3 × 1,5/20 | 20.0 | |||||||||||
| 2JK-3 × 1,5/31.5 | 31.5 | |||||||||||
| 2JK-3×1.8/11.2 | 1.80 | 362 | 770 | 1217 | 11.2 | |||||||
| 2JK-3 × 1,8/20 | 20.0 | |||||||||||
| 2JK-3 × 1,8/31.5 | 31.5 | |||||||||||
| 2JK-3.5×1.7/11.2 | 3.5 | 1.70 | 170 | 115 | 40 | 349 | 746 | - | 12.6 | 11.2 | ||
| 2JK-3.5×1.7/20 | 20.0 | |||||||||||
| 2JK-3.5×2.1/11.2 | 2.10 | 450 | 950 | - | 11.2 | |||||||
| 2JK-3.5×2.1/11.2 | 20.0 | |||||||||||
| 2JK-4×2.1/10 | 4.0 | 245 | 160 | 48 | 421 | 891 | - | 12.6 | 10.0 | 600 | ||
| 2JK-4×2.1/11.2 | 11.2 | |||||||||||
| 2JK-4×2.1/20 | 20.0 | |||||||||||
| 2JK-5×2.3/10 | 5.0 | 2.30 | 280 | 180 | 52 | 533 | - | - | 12 | 10.0 | 500 | |
| 2JK-5×2.3/11.2 | 11.2 | |||||||||||

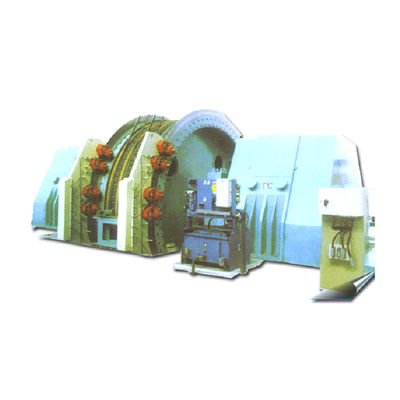

Kerekan Penambangan Gesekan Multi-Tali
Produk seri termasuk rangka kepala 1,85m-6m dan tipe lantai, dan dapat digunakan untuk pengangkatan mineral, pengangkatan personel, serta material dan peralatan yang diturunkan dari poros vertikal bijih batu bara, logam, dan bukan logam.
Kerekan tambang gesekan multi tali menara
| Model | Diameter roda: | Tali Kawat |
Maks kecepatan kenaikan |
Peredam | Ukuran (P×L×T) |
|
| tegangan statis maksimum | ||||||
| M | kn | MS | Model | Rasio kecepatan | M | |
| JKM-1.3×4(Ⅰ)E | 100 | 5 | XP550 | 11.5 | 6,4 × 6,5 × 1,6 | |
| JKM-1.6×4(Ⅰ)E | 150 | 8 | XP560 | 7.35 10.5 11.5 |
6.4×7×1.75 | |
| JKM-1,85×4(Ⅰ)E | 210 | 10 | XP800 | 7×7.5×2.02 | ||
| JKM-2×4(Ⅰ)E | 2 | 230 180 |
10 | XP800 | 7×8×2.2 | |
| JKM-2.25×4(Ⅰ)E | 2 | 215 | 10 | XP800 | 7.4×8×2.3 | |
| JKM-2.8×4(Ⅰ)E | 2.5 | 335 | 14 | XP1000 | 8.5×10×2.65 | |
| JKM-2.8×4(Ⅱ)E | P2H630 | 7,5 × 8,5 × 2,65 | ||||
| JKM-2.8×6(Ⅰ)E | 2.5 | 500 | 14 | XP1120 | 8×8.5×2.68 | |
| JKM-2.8×6(Ⅱ)E | P2H800 | 7,5 × 8,5 × 2,68 | ||||
| JKM-2.8×6(Ⅲ)E | 7.5×8×2.7 | |||||
| JKM-3.25×4(Ⅰ)E | 3 | 450 | 14 | XP1120 | 7.35 10.5 11.5 |
8.9×8.9×2.98 |
| JKM-3.25×4(Ⅱ)E | P2H800 | 8,5 × 8,7 × 2,98 | ||||
| JKM-3.5×6(Ⅰ)E | 3 | 790 | 14 | XP1250 | 11.5×9.2×3.15 | |
| JKM-3.5×6(Ⅱ)E | P2H900 | 10.5×9.2×3.15 | ||||
| JKM-3.5×6(Ⅲ)E | 8×9×3.2 | |||||
| JKM-4×4(Ⅰ)E | 3.2 | 690 | 14 | XP1250 | 7.35 10.5 11.5 |
9×10×3.63 |
| JKM-4×4(Ⅱ)E | P2H900 | 9×10×3.63 | ||||
| JKM-4×4(Ⅲ)E | 7.5×9×3.63 | |||||
| JKM-4×6(Ⅲ)E | 3.2 | 1030 | 9×9×3.63 | |||
| JKM-4.5×6(Ⅲ)E | 3.6 | 1330 | 16 | 12 × 9,5 × 3,9 | ||
| JKM-5×6(Ⅲ)E | 4 | 1600 | ||||
Kerekan tambang gesekan multi tali tipe lantai
| Model | Diameter roda: | Tali Kawat |
Maks kecepatan kenaikan |
Mengurangi | Ukuran (P×L×T) |
|||
| tegangan statis maksimum |
Maks
|
|||||||
| M | kn | mm | MS | Model | Perbandingan | M | ||
| JKMD-2.25×2(Ⅰ)E | 2.25 | 105 | 22 | 10 | ZZP560(2) | 11.5 | 7.7×9×2.1 | |
| JKMD-2.25×4(Ⅰ)E | 215 | XP800(2) | 7.35 10.5 11.5 |
6,8 × 9,5 × 2,3 | ||||
| JKMD-2.8×2(Ⅱ)E | 2.8 | 165 | 28 | XP800(2) | 7.8×10×2.65 | |||
| JKMD-2.8×4(Ⅰ)E | 335 | XP1000(2) | 8.5×10×2.65 | |||||
| JKMD-2.8×4(Ⅱ)E | P2H800(2) | 7,5 × 10 × 2,65 | ||||||
| JKMD-3.5×2(Ⅰ)E | 3.5 | 265 | 35 | XP1000(2) | 7×9.5×3.02 | |||
| JKMD-3.5×4(Ⅰ)E | 525 | 13 | XP1120(2) | 8,5 × 9,5 × 3 | ||||
| JKMD-3.5×4(Ⅱ)E | P2H800(2) | 8×9.5×3.02 | ||||||
| JKMD-3.5×4(Ⅲ)E | 7,5 × 9,5 × 3,0 | |||||||
| JKMD-4×2(Ⅰ)E | 4 | 340 | 39.5 | 12 | XP1120(2) |
7.35 10.5 11.5 |
8.2×10×3.4 | |
| JKMD-4×2(Ⅱ)E | P2800(2) | 7.8×10×3.4 | ||||||
| JKMD-4×4(Ⅰ)E | 680 | 14 | XP1250(2) | 11×10×3.4 | ||||
| JKMD-4×4(Ⅱ)E | P2H900(2) | 10.5×10×3.4 | ||||||
| JKMD-4×4(Ⅲ)E | 8.1×8.7×3.4 | |||||||
| JKMD-4.5×4(Ⅲ)E | 4,5 | 900 | 45 | 9,5 × 9,5 × 3,7 | ||||
| JKMD-5×4(Ⅲ)E | 5 | 1070 | 50 | 9.5×10×4 | ||||
| JKMD-5.5×4(Ⅲ)E | 5.5 | 1300 | 55 | 11×10.5×4.5 | ||||
| JKMD-5.7×4(Ⅲ)E | 5.7 | 1500 | 57 | |||||
| JKMD-6×4(Ⅲ)E | 6 | 1570 | 57 | 11×10.5×4 |
||||
